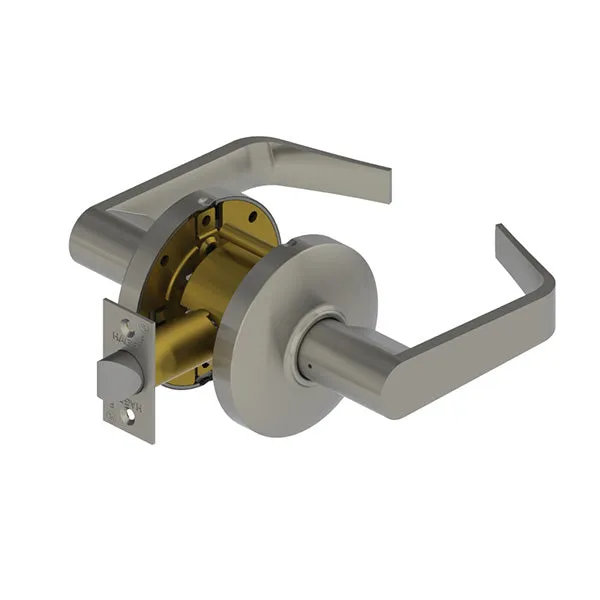

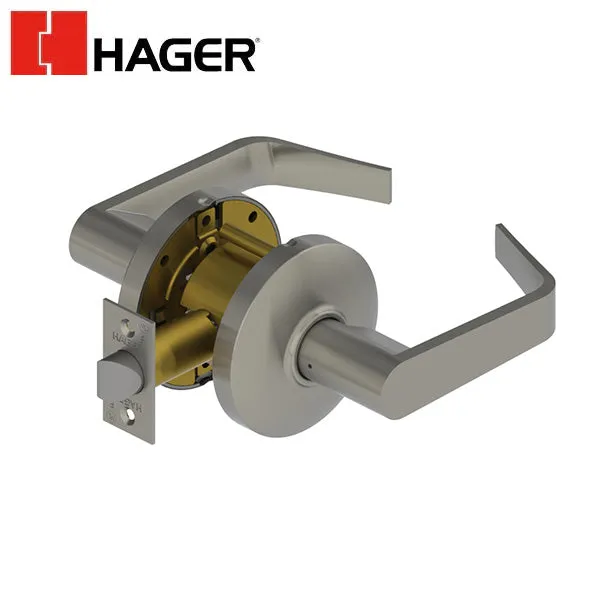

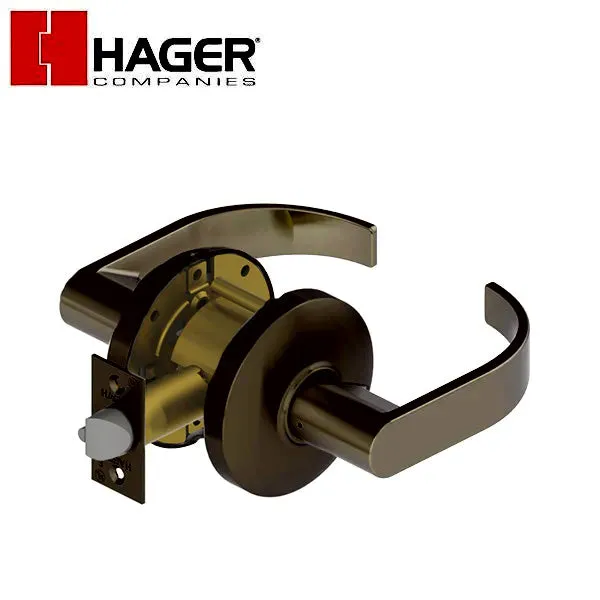

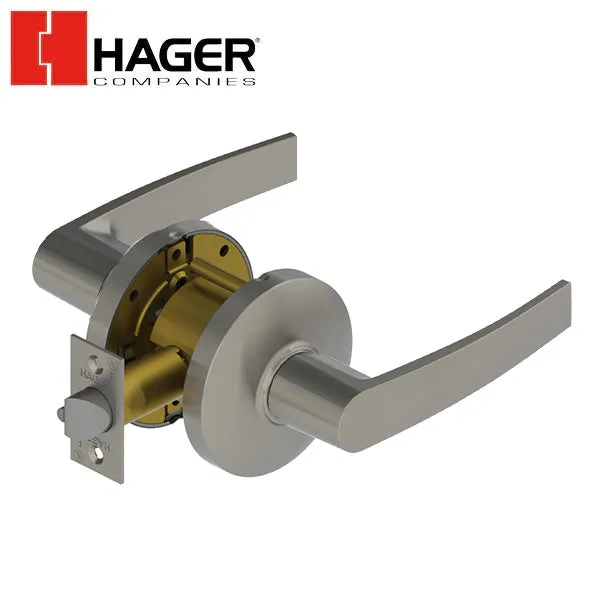

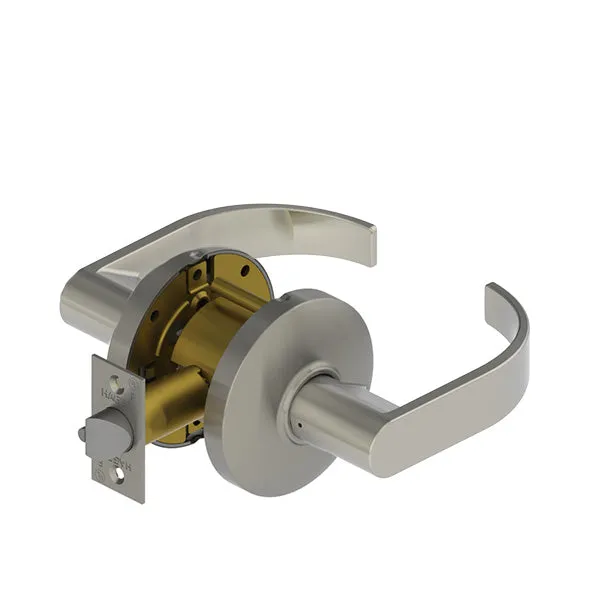

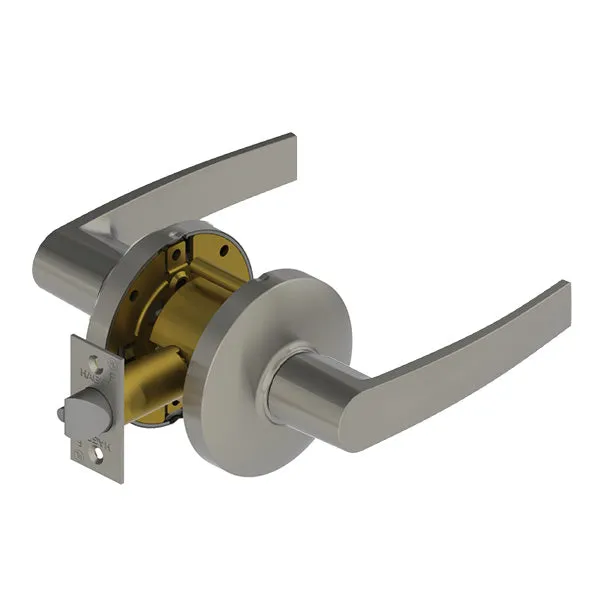

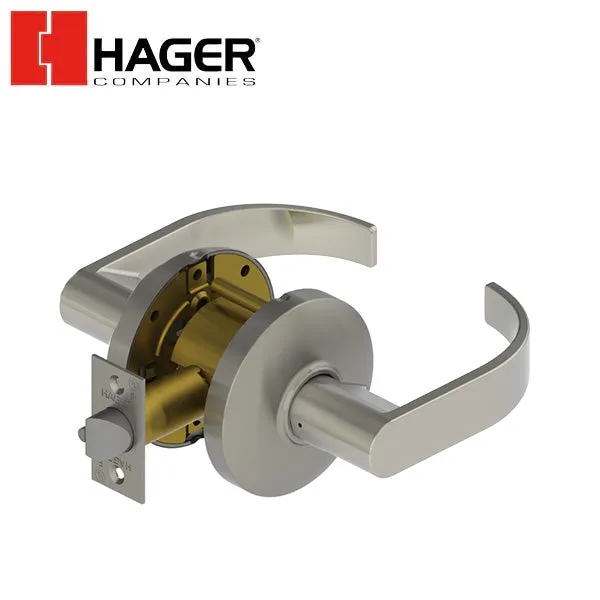

Name: Hager - 3510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Trim
SKU: 714371

Hager - 3510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Trim

$ 56.54

$ 73.50

Finish:

OilRubbedBronze
SatinChrome
SatinStainlessSteel

Lever:

Archer
Withnell
August

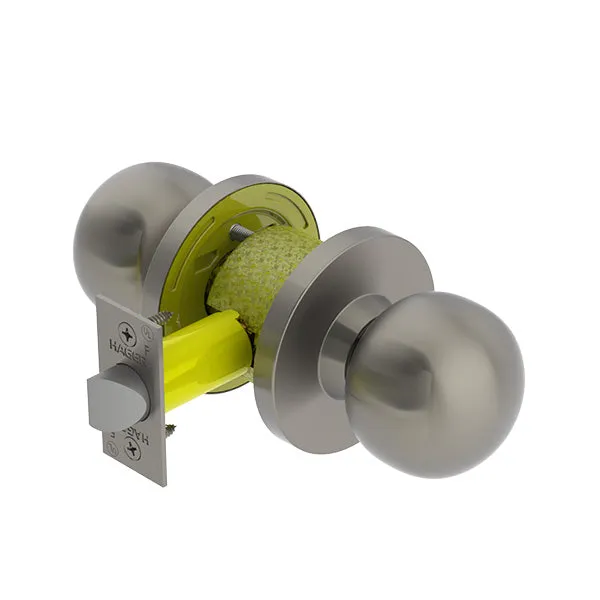

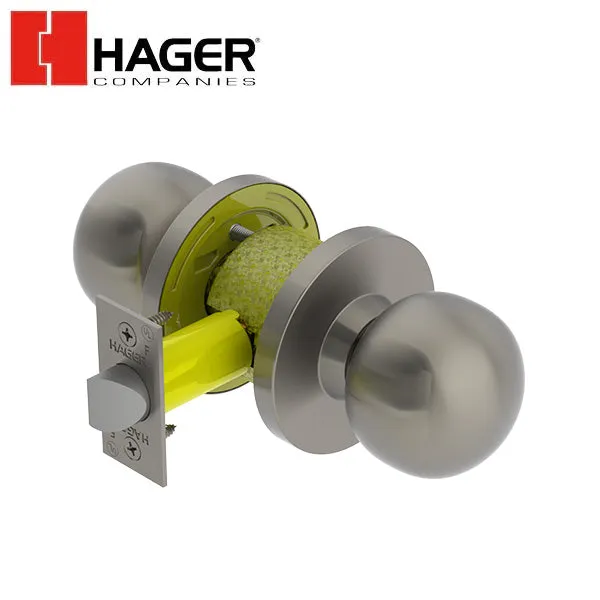

ApolloKnob

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.

More Details Below:

Specs

Certifications	BHMA Certified ANSI A156.2, Series 4000 Grade 2 ADA Compliant ANSI A117.1 Accessibility Code UL/cUL Listed for all functions up to 3 hours "A" label single doors ANSI A250.13 Severe Windstorm ComponentUL10C Positive Pressure Rated
Functions	Passage (F75)
Lever Options	Archer, August and Withnell
Backsets	2-3/4" (70mm) 2-3/8" (60mm) 3-3/4" (94mm) 5" (128mm)
Door Thickness	1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim	Wrought Brass, Bronze, and Stainless Steel
Latchbolt Type	1/2" (13 mm) throw, stainless steel 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
Notes	No exposed mounting screws Non-handed
Options	Lead Lining Tactile Warning Split Finish
Rose Diameter	3-11/32" (85 mm)
Strikes	3935 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike Optional strikes available
Warranty	Lifetime
